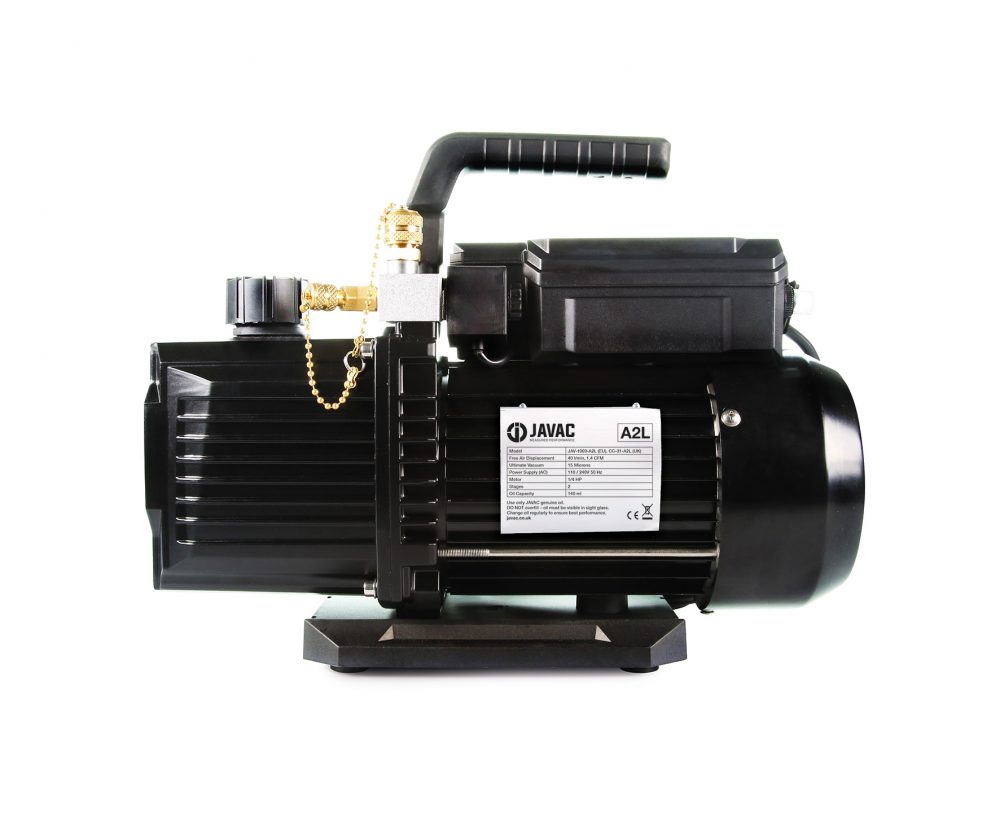

CC-31 A2L JAV-1069-A2L

CC-31 A2L JAV-1069-A2L

• Dual Voltage Vacuum Pumps
• High performance A2L / A3  range
• Sparkproof switches
• Hard wired 5m Lead
• Dual Voltage
• Solenoid valve
• Easy Access oil drain

Product code - UK only Product code - EU
CC-31 A2L JAV-1069-A2L

Specification

Suitability All standard and A2L /A3 applications
Stage Double
Ultimate vacuum 15 microns
Free air displacement 40 l/m (1.4 CFM)
Power supply Dual voltage 110/240 V 50Hz
Motor size 1/4 HP
Power cord IEC
Oil capacity 140 ml
Intake fittings 1/4” SAE, 3/8” SAE
Weight 4.5 kg
Dimensions 265 x 105 x 220 mm

FIND OUT WHERE TO BUY OUR PRODUCTS >

Find your nearest JAVAC stockist.

DOWNLOAD THE TECH MANUAL >
